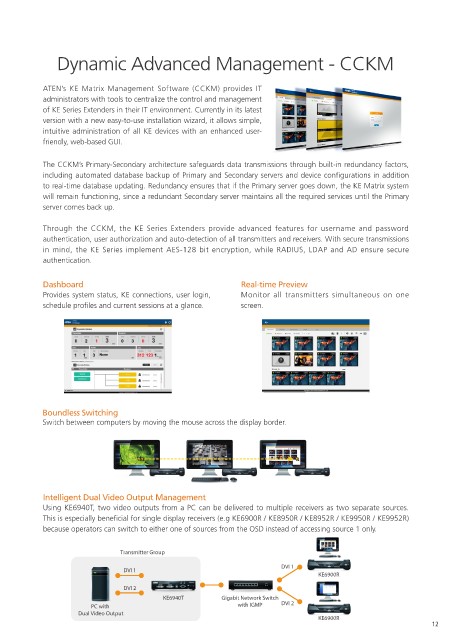

Dynamic Advanced Management - CCKM

ATEN’s KE Matrix Management Software (CCKM) provides IT
administrators with tools to centralize the control and management
of KE Series Extenders in their IT environment. Currently in its latest
version with a new easy-to-use installation wizard, it allows simple,
intuitive administration of all KE devices with an enhanced user-
friendly, web-based GUI.

The CCKM’s Primary-Secondary architecture safeguards data transmissions through built-in redundancy factors,
including automated database backup of Primary and Secondary servers and device configurations in addition
to real-time database updating. Redundancy ensures that if the Primary server goes down, the KE Matrix system
will remain functioning, since a redundant Secondary server maintains all the required services until the Primary
server comes back up.

Through the CCKM, the KE Series Extenders provide advanced features for username and password
authentication, user authorization and auto-detection of all transmitters and receivers. With secure transmissions
in mind, the KE Series implement AES-128 bit encryption, while RADIUS, LDAP and AD ensure secure
authentication.

Dashboard Real-time Preview
Provides system status, KE connections, user login, Monitor all transmitters simultaneous on one
schedule profiles and current sessions at a glance. screen.

Boundless Switching
Switch between computers by moving the mouse across the display border.

Intelligent Dual Video Output Management
Using KE6940T, two video outputs from a PC can be delivered to multiple receivers as two separate sources.
This is especially beneficial for single display receivers (e.g KE6900R / KE8950R / KE8952R / KE9950R / KE9952R)
because operators can switch to either one of sources from the OSD instead of accessing source 1 only.

Transmitter Group
DVI 1
DVI 1
KE6900R
DVI 2
KE6940T Gigabit Network Switch
PC with with IGMP DVI 2
Dual Video Output
KE6900R
