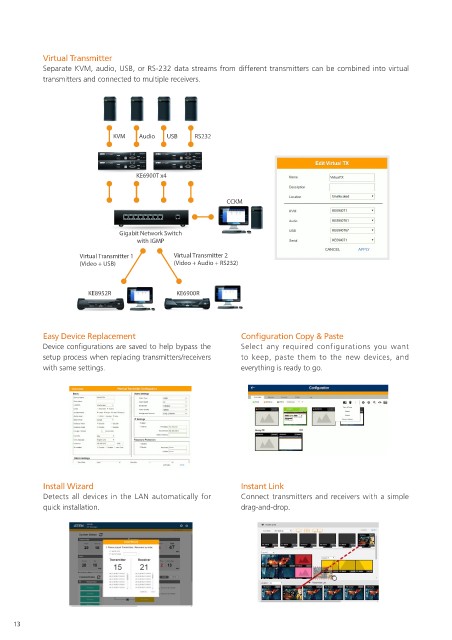

Virtual Transmitter
Separate KVM, audio, USB, or RS-232 data streams from different transmitters can be combined into virtual
transmitters and connected to multiple receivers.

KVM Audio USB RS232

KE6900T x4

CCKM

Gigabit Network Switch
with IGMP

Virtual Transmitter 1 Virtual Transmitter 2
(Video + USB) (Video + Audio + RS232)

KE8952R KE6900R

Easy Device Replacement Configuration Copy & Paste
Device configurations are saved to help bypass the Select any required configurations you want
setup process when replacing transmitters/receivers to keep, paste them to the new devices, and
with same settings. everything is ready to go.

Install Wizard Instant Link
Detects all devices in the LAN automatically for Connect transmitters and receivers with a simple
quick installation. drag-and-drop.
