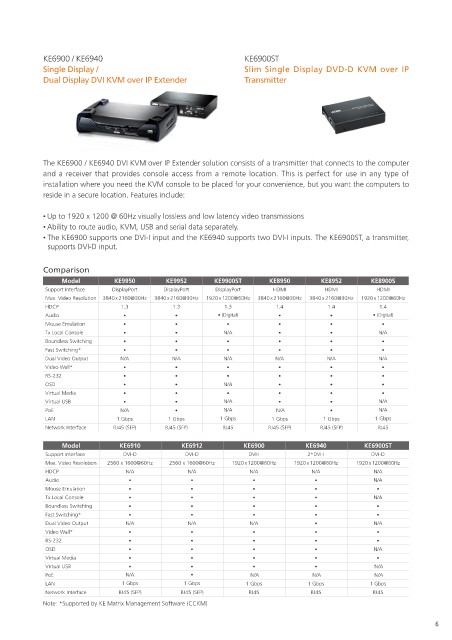

Page 9 - ATEN Product Series Guide - KVM over IP Matrix System Product Guide

KE6900 / KE6940 KE6900ST
Single Display / Slim Single Display DVD-D KVM over IP
Dual Display DVI KVM over IP Extender Transmitter

The KE6900 / KE6940 DVI KVM over IP Extender solution consists of a transmitter that connects to the computer
and a receiver that provides console access from a remote location. This is perfect for use in any type of
installation where you need the KVM console to be placed for your convenience, but you want the computers to
reside in a secure location. Features include:

• Up to 1920 x 1200 @ 60Hz visually lossless and low latency video transmissions
• Ability to route audio, KVM, USB and serial data separately.
• The KE6900 supports one DVI-I input and the KE6940 supports two DVI-I inputs. The KE6900ST, a transmitter,
supports DVI-D input.

Comparison
Model KE9950 KE9952 KE9900ST KE8950 KE8952 KE8900S
Support Interface DisplayPort DisplayPort DisplayPort HDMI HDMI HDMI
Max. Video Resolution 3840 x 2160@30Hz 3840 x 2160@30Hz 1920 x 1200@60Hz 3840 x 2160@30Hz 3840 x 2160@30Hz 1920 x 1200@60Hz
HDCP 1.3 1.3 1.3 1.4 1.4 1.4
Audio • • • (Digital) • • • (Digital)
Mouse Emulation • • • • • •
Tx Local Console • • N/A • • N/A
Boundless Switching • • • • • •
Fast Switching* • • • • • •
Dual Video Output N/A N/A N/A N/A N/A N/A
Video Wall* • • • • • •
RS-232 • • • • • •
OSD • • N/A • • •
Virtual Media • • • • • •
Virtual USB • • N/A • • N/A
PoE N/A • N/A N/A • N/A
LAN 1 Gbps 1 Gbps 1 Gbps 1 Gbps 1 Gbps 1 Gbps
Network Interface RJ45 (SFP) RJ45 (SFP) RJ45 RJ45 (SFP) RJ45 (SFP) RJ45

Model KE6910 KE6912 KE6900 KE6940 KE6900ST
Support Interface DVI-D DVI-D DVI-I 2*DVI-I DVI-D
Max. Video Resolution 2560 x 1600@60Hz 2560 x 1600@60Hz 1920 x 1200@60Hz 1920 x 1200@60Hz 1920 x 1200@60Hz
HDCP N/A N/A N/A N/A N/A
Audio • • • • N/A
Mouse Emulation • • • • •
Tx Local Console • • • • N/A
Boundless Switching • • • • •
Fast Switching* • • • • •
Dual Video Output N/A N/A N/A • N/A
Video Wall* • • • • •
RS-232 • • • • •
OSD • • • • N/A
Virtual Media • • • • •
Virtual USB • • • • N/A
PoE N/A • N/A N/A N/A
LAN 1 Gbps 1 Gbps 1 Gbps 1 Gbps 1 Gbps
Network Interface RJ45 (SFP) RJ45 (SFP) RJ45 RJ45 RJ45
Note: *Supported by KE Matrix Management Software (CCKM)

6
