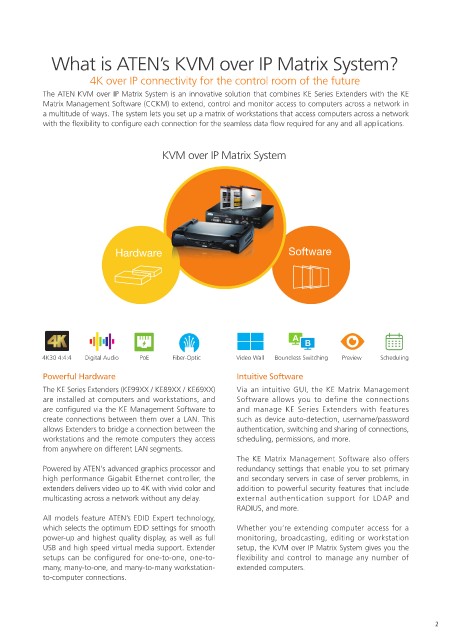

What is ATEN’s KVM over IP Matrix System?

4K over IP connectivity for the control room of the future

The ATEN KVM over IP Matrix System is an innovative solution that combines KE Series Extenders with the KE
Matrix Management Software (CCKM) to extend, control and monitor access to computers across a network in
a multitude of ways. The system lets you set up a matrix of workstations that access computers across a network
with the flexibility to configure each connection for the seamless data flow required for any and all applications.

KVM over IP Matrix System

Hardware Software

4K30 4:4:4 Digital Audio PoE Fiber-Optic Video Wall Boundless Switching Preview Scheduling

Powerful Hardware Intuitive Software
The KE Series Extenders (KE99XX / KE89XX / KE69XX) Via an intuitive GUI, the KE Matrix Management
are installed at computers and workstations, and Software allows you to define the connections
are configured via the KE Management Software to and manage KE Series Extenders with features
create connections between them over a LAN. This such as device auto-detection, username/password
allows Extenders to bridge a connection between the authentication, switching and sharing of connections,
workstations and the remote computers they access scheduling, permissions, and more.
from anywhere on different LAN segments.
The KE Matrix Management Software also offers
Powered by ATEN's advanced graphics processor and redundancy settings that enable you to set primary
high performance Gigabit Ethernet controller, the and secondary servers in case of server problems, in
extenders delivers video up to 4K with vivid color and addition to powerful security features that include
multicasting across a network without any delay. external authentication support for LDAP and
RADIUS, and more.
All models feature ATEN’s EDID Expert technology,
which selects the optimum EDID settings for smooth Whether you’re extending computer access for a
power-up and highest quality display, as well as full monitoring, broadcasting, editing or workstation
USB and high speed virtual media support. Extender setup, the KVM over IP Matrix System gives you the
setups can be configured for one-to-one, one-to- flexibility and control to manage any number of
many, many-to-one, and many-to-many workstation- extended computers.
to-computer connections.
