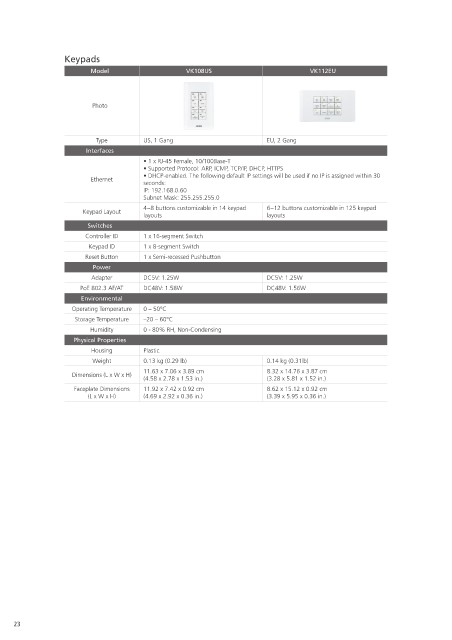

Keypads
Model VK108US VK112EU


Type US, 1 Gang EU, 2 Gang
Interfaces
• 1 x RJ-45 Female, 10/100Base-T
• Supported Protocol: ARP, ICMP, TCP/IP, DHCP, HTTPS
• DHCP-enabled. The following default IP settings will be used if no IP is assigned within 30
Ethernet
seconds:
IP: 192.168.0.60
Subnet Mask: 255.255.255.0
4~8 buttons customizable in 14 keypad 6~12 buttons customizable in 125 keypad
Keypad Layout
layouts layouts
Switches
Controller ID 1 x 16-segment Switch
Keypad ID 1 x 8-segment Switch
Reset Button 1 x Semi-recessed Pushbutton
Power
Adapter DC5V: 1.25W DC5V: 1.25W
PoE 802.3 AF/AT DC48V: 1.58W DC48V: 1.56W
Environmental
Operating Temperature 0 – 50°C
Storage Temperature –20 – 60°C
Humidity 0 - 80% RH, Non-Condensing
Physical Properties
Housing Plastic
Weight 0.13 kg (0.29 lb) 0.14 kg (0.31lb)
11.63 x 7.06 x 3.89 cm 8.32 x 14.76 x 3.87 cm
Dimensions (L x W x H)
(4.58 x 2.78 x 1.53 in.) (3.28 x 5.81 x 1.52 in.)
Faceplate Dimensions 11.92 x 7.42 x 0.92 cm 8.62 x 15.12 x 0.92 cm
(L x W x H) (4.69 x 2.92 x 0.36 in.) (3.39 x 5.95 x 0.36 in.)
