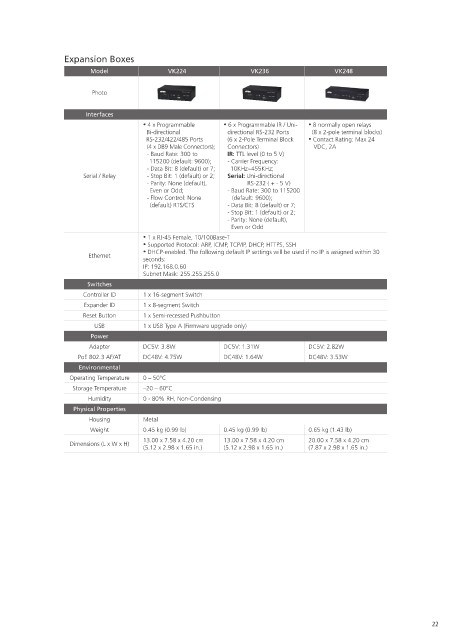

Page 25 - ATEN Product Series Guide - ATEN Control System

Expansion Boxes
Model VK224 VK236 VK248


Interfaces
• 4 x Programmable • 6 x Programmable IR / Uni- • 8 normally open relays
Bi-directional directional RS-232 Ports (8 x 2-pole terminal blocks)
RS-232/422/485 Ports (6 x 2-Pole Terminal Block • Contact Rating: Max 24
(4 x DB9 Male Connectors); Connectors) VDC, 2A
- Baud Rate: 300 to IR: TTL level (0 to 5 V)
115200 (default: 9600); - Carrier Frequency:
- Data Bit: 8 (default) or 7; 10KHz~455KHz;
Serial / Relay - Stop Bit: 1 (default) or 2; Serial: Uni-directional
- Parity: None (default), RS-232 ( + - 5 V)
Even or Odd; - Baud Rate: 300 to 115200
- Flow Control: None (default: 9600);
(default) RTS/CTS - Data Bit: 8 (default) or 7;
- Stop Bit: 1 (default) or 2;
- Parity: None (default),
Even or Odd
• 1 x RJ-45 Female, 10/100Base-T
• Supported Protocol: ARP, ICMP, TCP/IP, DHCP, HTTPS, SSH
• DHCP-enabled. The following default IP settings will be used if no IP is assigned within 30
Ethernet
seconds:
IP: 192.168.0.60
Subnet Mask: 255.255.255.0
Switches
Controller ID 1 x 16-segment Switch
Expander ID 1 x 8-segment Switch
Reset Button 1 x Semi-recessed Pushbutton
USB 1 x USB Type A (Firmware upgrade only)
Power
Adapter DC5V: 3.8W DC5V: 1.31W DC5V: 2.82W
PoE 802.3 AF/AT DC48V: 4.75W DC48V: 1.64W DC48V: 3.53W
Environmental
Operating Temperature 0 – 50°C
Storage Temperature –20 – 60°C
Humidity 0 - 80% RH, Non-Condensing
Physical Properties
Housing Metal
Weight 0.45 kg (0.99 lb) 0.45 kg (0.99 lb) 0.65 kg (1.43 lb)
13.00 x 7.58 x 4.20 cm 13.00 x 7.58 x 4.20 cm 20.00 x 7.58 x 4.20 cm
Dimensions (L x W x H)
(5.12 x 2.98 x 1.65 in.) (5.12 x 2.98 x 1.65 in.) (7.87 x 2.98 x 1.65 in.)
