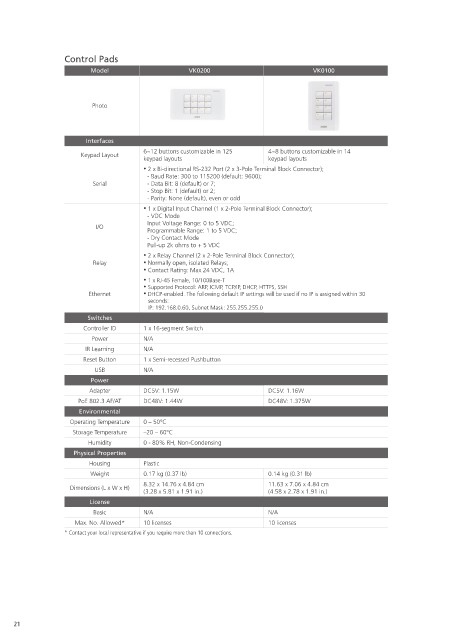

Control Pads
Model VK0200 VK0100


Interfaces
6~12 buttons customizable in 125 4~8 buttons customizable in 14
Keypad Layout
keypad layouts keypad layouts
• 2 x Bi-directional RS-232 Port (2 x 3-Pole Terminal Block Connector);
- Baud Rate: 300 to 115200 (default: 9600);
Serial - Data Bit: 8 (default) or 7;
- Stop Bit: 1 (default) or 2;
- Parity: None (default), even or odd
• 1 x Digital Input Channel (1 x 2-Pole Terminal Block Connector);
- VDC Mode
Input Voltage Range: 0 to 5 VDC;
I/O
Programmable Range: 1 to 5 VDC;
- Dry Contact Mode
Pull-up 2k ohms to + 5 VDC
• 2 x Relay Channel (2 x 2-Pole Terminal Block Connector);
Relay • Normally open, isolated Relays;
• Contact Rating: Max 24 VDC, 1A
• 1 x RJ-45 Female, 10/100Base-T
• Supported Protocol: ARP, ICMP, TCP/IP, DHCP, HTTPS, SSH
Ethernet • DHCP-enabled. The following default IP settings will be used if no IP is assigned within 30
seconds:
IP: 192.168.0.60, Subnet Mask: 255.255.255.0
Switches
Controller ID 1 x 16-segment Switch
Power N/A
IR Learning N/A
Reset Button 1 x Semi-recessed Pushbutton
USB N/A
Power
Adapter DC5V: 1.15W DC5V: 1.16W
PoE 802.3 AF/AT DC48V: 1.44W DC48V: 1.375W
Environmental
Operating Temperature 0 – 50°C
Storage Temperature –20 – 60°C
Humidity 0 - 80% RH, Non-Condensing
Physical Properties
Housing Plastic
Weight 0.17 kg (0.37 lb) 0.14 kg (0.31 lb)
8.32 x 14.76 x 4.84 cm 11.63 x 7.06 x 4.84 cm
Dimensions (L x W x H)
(3.28 x 5.81 x 1.91 in.) (4.58 x 2.78 x 1.91 in.)
License
Basic N/A N/A
Max. No. Allowed* 10 licenses 10 licenses
* Contact your local representative if you require more than 10 connections.
