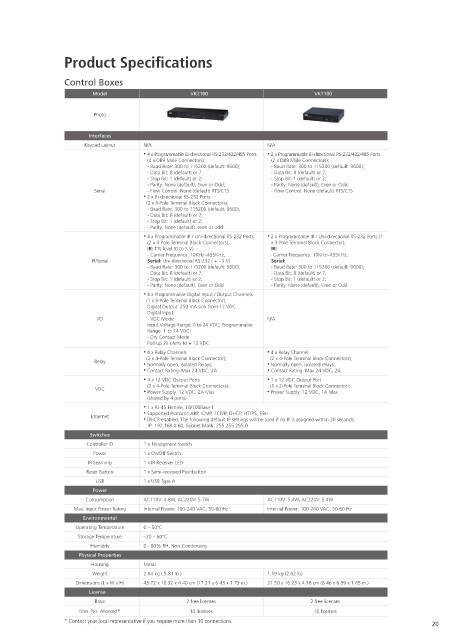

Product Specifications

Control Boxes
Model VK2100 VK1100


Interfaces
Keypad Layout N/A N/A
• 4 x Programmable Bi-directional RS-232/422/485 Ports • 2 x Programmable Bi-directional RS-232/422/485 Ports
(4 x DB9 Male Connectors); (2 x DB9 Male Connectors);
- Baud Rate: 300 to 115200 (default: 9600); - Baud Rate: 300 to 115200 (default: 9600);
- Data Bit: 8 (default) or 7; - Data Bit: 8 (default) or 7;
- Stop Bit: 1 (default) or 2; - Stop Bit: 1 (default) or 2;
- Parity: None (default), Even or Odd; - Parity: None (default), Even or Odd;
Serial - Flow Control: None (default) RTS/CTS - Flow Control: None (default) RTS/CTS
• 2 x Bi-directional RS-232 Ports
(2 x 3-Pole Terminal Block Connectors);
- Baud Rate: 300 to 115200 (default: 9600);
- Data Bit: 8 (default) or 7;
- Stop Bit: 1 (default) or 2;
- Parity: None (default), even or odd
• 4 x Programmable IR / Uni-directional RS-232 Ports • 2 x Programmable IR / Uni-directional RS-232 Ports (1
(2 x 4-Pole Terminal Block Connectors); x 3-Pole Terminal Block Connector);
IR: TTL level (0 to 5 V) IR:
- Carrier Frequency: 10KHz~455KHz; - Carrier Frequency: 10KHz~455KHz;
IR/Serial Serial: Uni-directional RS-232 ( + - 5 V) Serial:
- Baud Rate: 300 to 115200 (default: 9600); - Baud Rate: 300 to 115200 (default: 9600);
- Data Bit: 8 (default) or 7; - Data Bit: 8 (default) or 7;
- Stop Bit: 1 (default) or 2; - Stop Bit: 1 (default) or 2;
- Parity: None (default), Even or Odd - Parity: None (default), Even or Odd
• 4 x Programmable Digital Input / Output Channels
(1 x 5-Pole Terminal Block Connector);
Digital Output: 250 mA sink from 12 VDC
Digital Input:
I/O - VDC Mode N/A
Input Voltage Range: 0 to 24 VDC; Programmable
Range: 1 to 24 VDC;
- Dry Contact Mode
Pull-up 2k ohms to + 12 VDC
• 4 x Relay Channels • 4 x Relay Channel
(2 x 4-Pole Terminal Block Connector); (2 x 4-Pole Terminal Block Connectors);
Relay
• Normally open, isolated Relays; • Normally open, isolated relays;
• Contact Rating: Max 24 VDC, 2A • Contact Rating: Max 24 VDC, 2A
• 4 x 12 VDC Output Ports • 1 x 12 VDC Output Port
(2 x 4-Pole Terminal Block Connectors); (1 x 2-Pole Terminal Block Connector);
VDC
• Power Supply: 12 VDC, 2A Max • Power Supply: 12 VDC, 1A Max
(shared by 4 ports)
• 1 x RJ-45 Female, 10/100Base-T
• Supported Protocol: ARP, ICMP, TCP/IP, DHCP, HTTPS, SSH
Ethernet
• DHCP-enabled. The following default IP settings will be used if no IP is assigned within 30 seconds:
IP: 192.168.0.60, Subnet Mask: 255.255.255.0
Switches
Controller ID 1 x 16-segment Switch
Power 1 x On/Off Switch
IR Learning 1 x IR Receiver LED
Reset Button 1 x Semi-recessed Pushbutton
USB 1 x USB Type A
Power
Consumption AC110V: 4.8W, AC220V: 5.7W AC110V: 5.4W, AC220V: 5.4W
Max. Input Power Rating Internal Power: 100-240 VAC, 50-60 Hz Internal Power: 100-240 VAC, 50-60 Hz
Environmental
Operating Temperature 0 – 50°C
Storage Temperature –20 – 60°C
Humidity 0 - 80% RH, Non-Condensing
Physical Properties
Housing Metal
Weight 2.64 kg ( 5.81 lb ) 1.19 kg (2.62 lb)
Dimensions (L x W x H) 43.72 x 16.32 x 4.40 cm (17.21 x 6.43 x 1.73 in.) 21.50 x 16.23 x 4.18 cm (8.46 x 6.39 x 1.65 in.)
License
Basic 2 free licenses 2 free licenses
Max. No. Allowed* 10 licenses 10 licenses
* Contact your local representative if you require more than 10 connections.
