P. 8

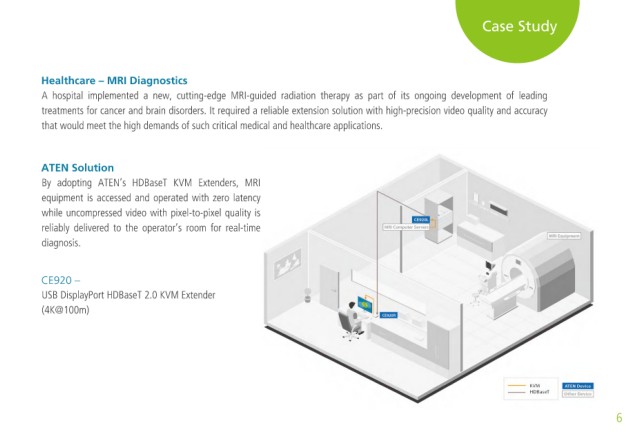

Case Study
Comparison Healthcare – MRI Diagnostics
Model CE920 CE820 CE624 CE620 CE611 CE610A A hospital implemented a new, cutting-edge MRI-guided radiation therapy as part of its ongoing development of leading
treatments for cancer and brain disorders. It required a reliable extension solution with high-precision video quality and accuracy
Interface DisplayPort / HDBaseT HDMI / HDBaseT DVI / HDBaseT
that would meet the high demands of such critical medical and healthcare applications.
Unit to Unit Cat 5e / 6 / 6a x 1
Inputs to Outputs 1 to 1 ATEN Solution
Max. Resolution / 4K@100m 1920 x 1200@100m 1920 x 1200@100m By adopting ATEN’s HDBaseT KVM Extenders, MRI
Distance 1080p@150m(Long Reach Mode enable) 1080p@150m(Long Reach Mode enable) 1080p@100m
equipment is accessed and operated with zero latency
HDCP HDCP 1.4 HDCP 2.2 HDCP 1.4 N/A N/A HDCP 1.4 while uncompressed video with pixel-to-pixel quality is
Long Reach Mode reliably delivered to the operator’s room for real-time
(1080p@150m) Active enable Active enable Active enable Active enable N/A Passive enable diagnosis.
Dual View N/A N/A • N/A N/A N/A
• (DP) • (HDMI)
Audio • Mic in / Speaker out • Mic in / Speaker out • Mic in / Speaker out N/A CE920 –
• Mic in / Speaker out • Mic in / Speaker out
USB DisplayPort HDBaseT 2.0 KVM Extender
RS-232 Channel • • • • • N/A
(4K@100m)
Ethernet • • N/A N/A N/A N/A
USB Channel • • • • • • (40 Mbps)
POH N/A N/A N/A N/A N/A N/A
5 6
