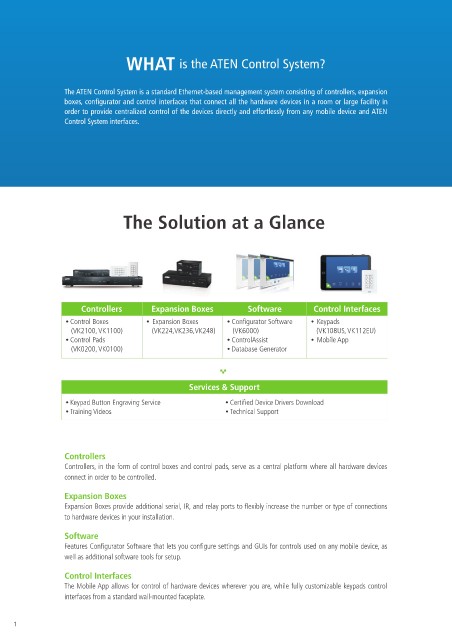

WHAT is the ATEN Control System?

The ATEN Control System is a standard Ethernet-based management system consisting of controllers, expansion

boxes, configurator and control interfaces that connect all the hardware devices in a room or large facility in
order to provide centralized control of the devices directly and effortlessly from any mobile device and ATEN
Control System interfaces.

The Solution at a Glance

Controllers Expansion Boxes Software Control Interfaces
• Control Boxes • Expansion Boxes • Confi gurator Software • Keypads
(VK2100, VK1100) (VK224,VK236,VK248) (VK6000) (VK108US, VK112EU)
• Control Pads • ControlAssist • Mobile App
(VK0200, VK0100) • Database Generator

Services & Support

• Keypad Button Engraving Service • Certifi ed Device Drivers Download
• Training Videos • Technical Support

Controllers
Controllers, in the form of control boxes and control pads, serve as a central platform where all hardware devices
connect in order to be controlled.

Expansion Boxes
Expansion Boxes provide additional serial, IR, and relay ports to fl exibly increase the number or type of connections
to hardware devices in your installation.

Software
Features Confi gurator Software that lets you confi gure settings and GUIs for controls used on any mobile device, as
well as additional software tools for setup.

Control Interfaces
The Mobile App allows for control of hardware devices wherever you are, while fully customizable keypads control
interfaces from a standard wall-mounted faceplate.
